Environmental Testing Laboratory
Qualify your product against MIL-STD, IEC 60068, DO-160 and ISO 16750 — without shipping it overseas.
Chamber capability at a glance
| Test volume | 400 L (700 × 650 × 900 mm) |
| Temperature range | −70 °C to +180 °C |
| Ramp rates | 10 °C/min heating · 8.5 °C/min cooling |
| Climatic range | +10 °C to +95 °C · 5–98 %RH |
| Regulation stability | ±0.1 °C · ±2 %RH |
Cable feedthroughs for powered and instrumented testing. Programmed profiles and full data logging on every run.
What we test
Constant temperature and humidity
The tests that tie up your own chamber for weeks. We hold a fixed setpoint to ±0.1 °C and ±2 %RH for as long as your specification demands — 85 °C/85 %RH,40 °C/93 %RH, 1000-hour life tests, high- and low-temperature storage. Unattended, long-duration soaks to EC 60068-2-78, MIL-STD-202G Method 103B and JESD22-A101C.
Temperature extremes
Cold and dry heat across the full −70 °C to +180 °C envelope: IEC 60068-2-1 and -2-2, MIL-STD-810 Methods 501 and 502 (through 810H), ISO 16750-4 and GAM EG 13.
Damp heat and climatic cycling
Cyclic and combined temperature/humidity profiles: IEC 60068-2-30, -2-38 and -2-78, MIL-STD-810 Method 507, MIL-STD-202G Method 106D, MIL-STD-883J Method 1004.7, RTCA DO-160 Section 6 and ISO 16750-4 cyclic.
Rate of change and stress screening
Controlled-rate and ESS profiles: IEC 60068-2-14 Test Nb, RTCA DO-160 Section 5 and ISO 16750-4 temperature steps and cycling.
Testing across automotive, defence, aerospace, electronics and industrial sectors.
Why test with XTEMP
You are dealing with the people who know the equipment. XTEMP is the authorised distributor for Climats in South Africa — we don’t just operate the chamber, we service and calibrate it, and our applications engineers read the standard with you before the first thermocouple goes on. You get the applicable revision, severity and category confirmed up front, a profile built to match, and a report you can put in front of your customer.
Frequently asked questions
Which test standards can you run? The chamber covers the temperature, humidity and climatic-cycling clauses of IEC 60068, MIL-STD-810, MIL-STD-202, MIL-STD-883, RTCA DO-160, ISO 16750-4, GAM EG 13 and the JESD22 series — 37 standards in total. Download the full capability matrix for the clause-by-clause breakdown.
Can I do MIL-STD-810 testing in South Africa? Yes. We run MIL-STD-810 Methods 501 (High Temperature), 502 (Low Temperature) and 507 (Humidity) locally in Cape Town, through revision 810H.
What temperature and humidity range does the chamber cover? −70 °C to +180 °C for temperature, and +10 °C to +95 °C at 5–98 %RH for climatic (humidity) testing, with regulation stability of ±0.1 °C and ±2 %RH.
What size product can you test? The usable test volume is 400 litres — 700 mm wide, 650 mm deep, 900 mm high. We can advise on fixturing and thermal load during scoping.
Do you offer accredited testing? We provide test conditioning and reporting to the standards listed above. Where a formally accredited (ISO/IEC 17025) result is required, contact us and we will advise on the best route for your programme.
How do I book chamber time and what does it cost? Send us your specification and we will confirm what we can run, the price, and lead time. Chamber time is booked by the day.
Environmental Test Standards Matrix

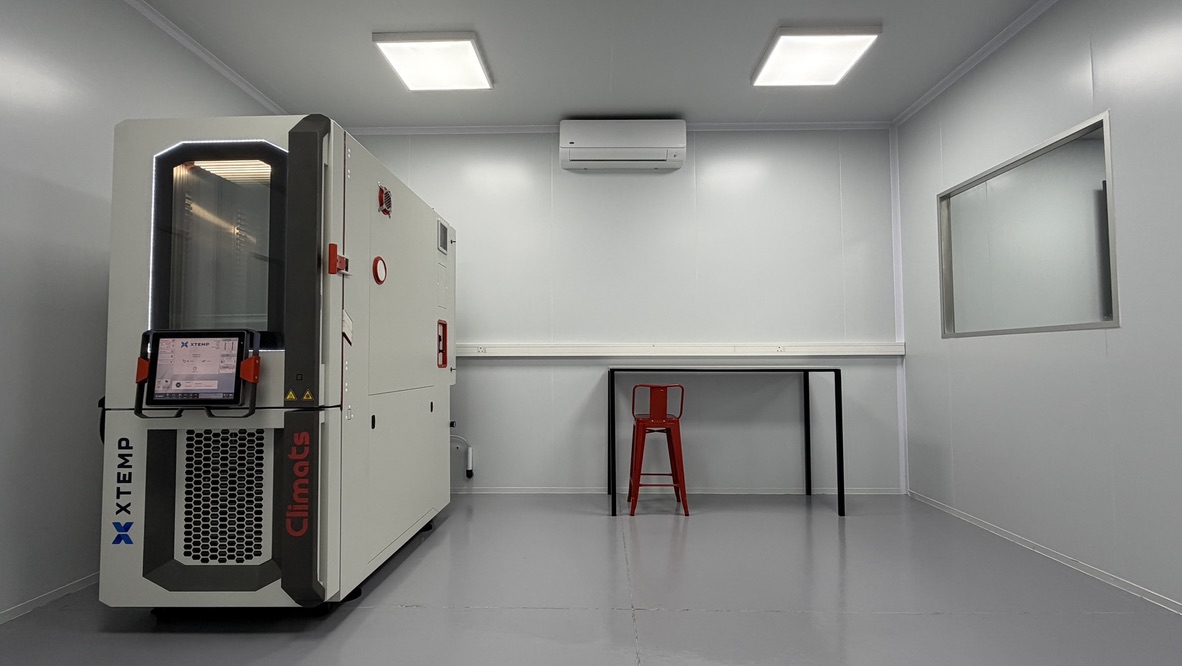

Declared capability of the Climats EXCAL 4024 HA climatic test chamber. temperature, humidity and climatic-cycling test standards.
The chamber generates the full conditioning envelope required by the standard, within the declared temperature, humidity and rate limits. |
Achievable within a stated limit — a severity class, a condition letter, an option, or subject to thermal-load verification. The limit is stated in every case. |
Not achievable in a single-zone climatic chamber. Requires two-zone shock, altitude, salt mist or splash-water equipment. |
|
A — COLD Low-temperature storage, operation and manipulation. Chamber floor of −70 °C covers every severity in the listed standards. |
|||||
| STANDARD | TEST / METHOD | CAPABILITY NOTE | STATUS | ||
| NF EN / IEC 60068-2-1 | Test A (Ab, Ad) | All severities to −65 °C. Chamber floor −70 °C. |
|
||
| GAM EG 13 | Fascicule 01 — Froid | Full severity range. |
|
||
| MIL-STD-810 | Method 502.2 → 502.7 — Low Temperature | Storage, operation and manipulation procedures. All revisions through 810H. |
|
||
| ISO 16750-4 | Low temperature test | Automotive severities to −40 °C. |
|
||
| JESD22-A119 | Low Temperature Storage Life | −65 °C condition covered. |
|
||
|
B — DRY HEAT High-temperature storage, operation and bake. Chamber ceiling +180 °C; a factory temperature extension to +200 °C / +250 °C is available as an option. |
|||||
| STANDARD | TEST / METHOD | CAPABILITY NOTE | STATUS | ||
| NF EN / IEC 60068-2-2 | Test B (Bb, Bd) | Severities to +180 °C. The +200 °C severity requires the temperature-extension option. |
|
||
| GAM EG 13 | Fascicule 02 — Chaleur sèche | Full severity range. |
|
||
| MIL-STD-810 | Method 501.2 → 501.7 — High Temperature | All revisions through 810H. |
|
||
| ISO 16750-4 | High temperature test | Automotive severities to +125 °C. |
|
||
| MIL-STD-202G | Method 108A — Life Test at Elevated Ambient | All conditions. Powered testing via cable feedthroughs. |
|
||
| MIL-STD-883D / J | Method 1008.2 — Stabilization Bake | Conditions A, B and C (125 / 150 / 175 °C). Conditions at ≥ 200 °C exceed the standard ceiling. |
|
||
| JESD22-A103D | High Temperature Storage Life | Conditions A, B and C (125 / 150 / 175 °C) only. |
|
||
|
C — CONSTANT TEMPERATURE & HUMIDITY (DAMP HEAT) Steady-state and cyclic humidity conditioning inside the +10 °C to +95 °C / 5–98 %RH climatic envelope. Long-duration soaks held to ± 0,3 °C and ± 2 %RH. |
|||||
| STANDARD | TEST / METHOD | CAPABILITY NOTE | STATUS | ||
| IEC 60068-2-30 | Test Db — Cyclic Damp Heat | Variants 1 and 2; upper severities +40 °C and +55 °C at ≥ 90 %RH. |
|
||
| IEC / EN 60068-2-38 | Test Z/AD — Composite Temp / Humidity Cyclic | +65 °C / 93 %RH cycles with the −10 °C sub-cycle (humidity uncontrolled below +10 °C, as the standard permits). |
|
||
| IEC / EN 60068-2-78 | Test Cab — Steady-State Damp Heat | All severities, incl. 40 °C / 93 %RH and 85 °C / 85 %RH. Long-duration soaks held to ± 0,3 °C / ± 2 %RH. |
|
||
| GAM EG 13 | Fascicule 03 — Chaleur humide | Full severity range. |
|
||
| MIL-STD-810 | Method 507 / 507.5 / 507.6 — Humidity | Induced, natural and aggravated cycles (60 °C / 95 %RH). |
|
||
| RTCA DO-160 | Section 6 — Humidity, Categories A / B / C | Severe humidity category (65 °C, 95 %RH) covered. |
|
||
| NF C 20-703 | Damp heat | Full severity range. |
|
||
| ISO 16750-4 | Damp heat, steady state | Full severity range. |
|
||
| MIL-STD-202G | Method 103B — Humidity (Steady State) | Conditions A–D. Powered variants via feedthroughs. |
|
||
| JESD22-A101C | Steady State Temp / Humidity Bias (85/85) | 1000 h runs supported. Bias supplied through instrumented feedthroughs. |
|
||
|
D — CLIMATIC CYCLING Combined temperature and humidity profiles, including sub-zero excursions outside the humidity-controlled band. |
|||||
| STANDARD | TEST / METHOD | CAPABILITY NOTE | STATUS | ||
| GAM EG 13 | Fascicule 08 — Cycles climatiques | Full profile range. |
|
||
| ISO 16750-4 | Damp heat cyclic; temperature / humidity cyclic | Standard automotive rates (1–2 K/min) comfortably within capability. |
|
||
| MIL-STD-202G | Method 106D — Moisture Resistance | 25 → 65 °C cycles at 90–98 %RH, incl. the optional −10 °C sub-cycle. |
|
||
| MIL-STD-331C | Test C1 — Temperature and Humidity Cycling | −54 °C to +71 °C at up to 95 %RH. |
|
||
| MIL-STD-810G | Method 507.5 — Humidity Cycling | All cycle types. |
|
||
| MIL-STD-883J | Method 1004.7 — Moisture Resistance | Full 10-day cycle profile. |
|
||
| JESD22-A100D | Cycled Temperature-Humidity-Bias Life Test | Bias via feedthroughs. |
|
||
| JJF 1101 | Verification of environmental test chamber performance | Chamber stability (± 0,1 / ± 0,3 °C; ± 2 %RH) and homogeneity meet the specification limits. |
|
||
|
E — RATE OF CHANGE & ENVIRONMENTAL STRESS SCREENING Declared rates are averaged over +180 °C → −70 °C, measured on the blowing air-flow sensor, empty chamber. Product-referenced rates are subject to thermal-load calculation. |
|||||
| STANDARD | TEST / METHOD | CAPABILITY NOTE | STATUS | ||
| NF EN / IEC 60068-2-14 | Test Nb — Change of temperature at specified rate | Severities to 8 °C/min (cooling-limited). 1, 3 and 5 °C/min severities fully covered; 15 °C/min is not achievable. |
|
||
| RTCA DO-160 | Section 5 — Temperature Variation | Category A (2 °C/min) fully covered. Category B (10 °C/min) not met on the cooling leg — 8,5 °C/min available. |
|
||
| ISO 16750-4 | Temperature steps; temperature cycling | Standard rates (1–2 K/min) fully covered. |
|
||
| GAM EG 13 | ESS — per fascicule invoked | Subject to the rate and thermal load specified in the applicable fascicule. |
|
||
| MIL-STD-331C | Test C6 — Environmental Stress Screening | Subject to the required rate at the product and the thermal load presented. |
|
||
| JESD22-A105C | Power and Temperature Cycling | Subject to rate; requires power feedthroughs and dissipation allowance. |
|
||
| NF EN / IEC 60068-2-14 | Test Na — Rapid change, prescribed transfer | Requires a two-zone thermal shock chamber with transfer in < 30 s. |
|
||
| MIL-STD-750-1 (Chg 3) | Method 1051 — Temperature Cycling | Transfer-time requirement implies two-zone shock equipment. |
|
||
| RTCA DO-160 | Section 4 — Temperature and Altitude | No vacuum capability. Requires an altitude |
|
||
| ISO 16750-4 | Ice-water / splash-water shock; | Requires dedicated shock, corrosion and frost equipment. The temperature and humidity clauses of ISO 16750-4 are covered above. |
|
||
| Scope statement. The Climats EXCAL 4024 HA generates the temperature and humidity conditioning required by the standards listed above, within the envelope −70 °C / +180 °C and +10 °C to +95 °C at 5–98 %RH. Standards or clauses requiring two-zone thermal shock, altitude simulation, salt mist or splash-water conditioning fall outside the scope of a single-zone climatic chamber and are declared as such. XTEMP will confirm the applicable revision, severity and category against your specification before any test is scoped. |
Coming Soon!

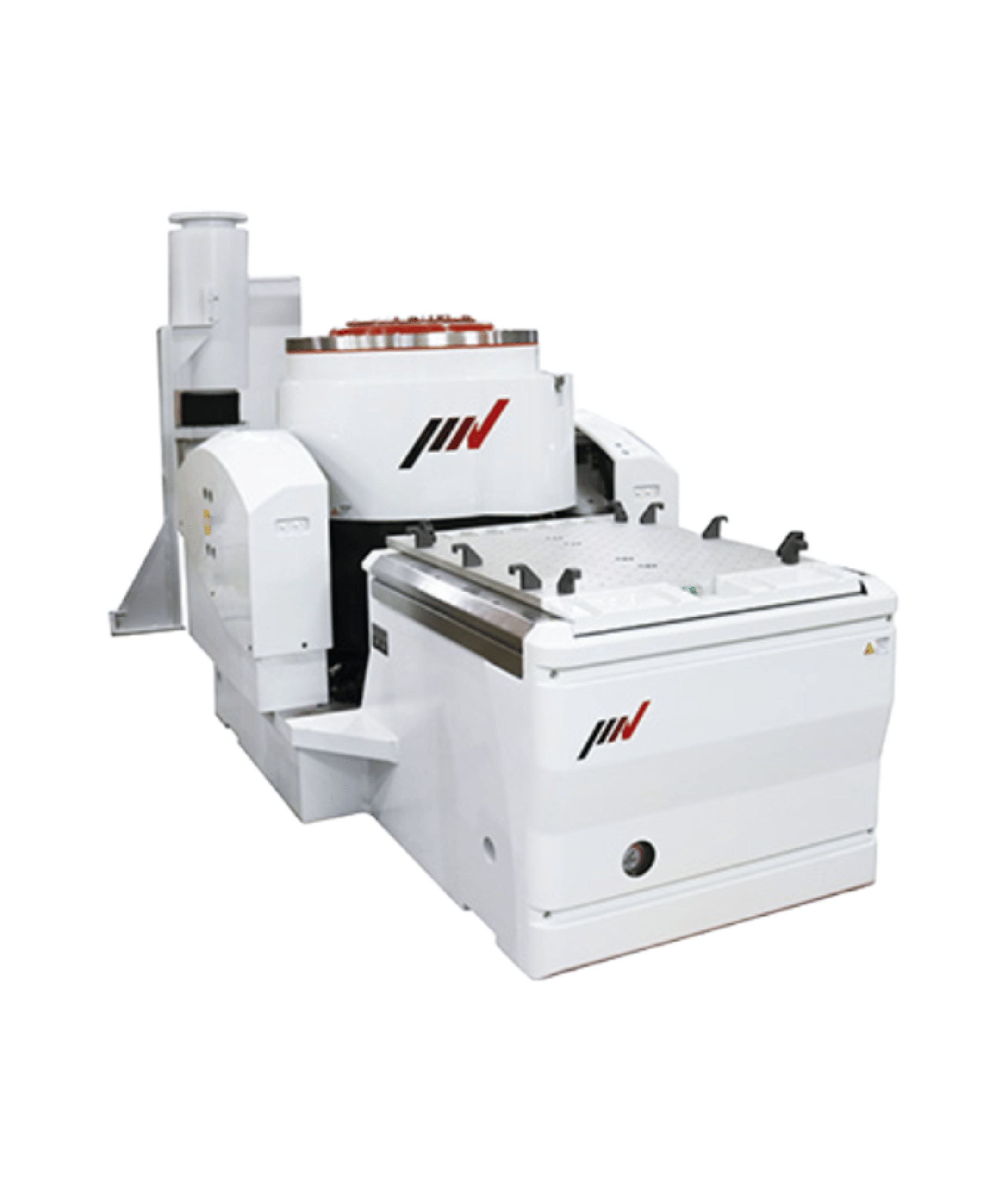

IMV Vibration Shaker A30
30kN Electro Dynamic Shaker
With 1050mm x 1050mm Slip Table
With 450mm x 450mm Slip Table
With 750mm x 750mm Head expander
4-Channel Vibration Research Controller
Sine, Random, Shock profiles
Ascott SS1000 IP
Corrosion test chamber
Salt Spray mode
Condesation Humidity mode
Air Drying mode
1000 liters
